ZJH-C2 Clamshell Box Making Machine

Clamshell Box Making Machine, Clamshell Rigid Box, Rigid Clamshell Box making machine, rigid box wrapping machine, clamshell box wrapper

  • Outstanding advantages
  • Features
  • Parameter
  • Service

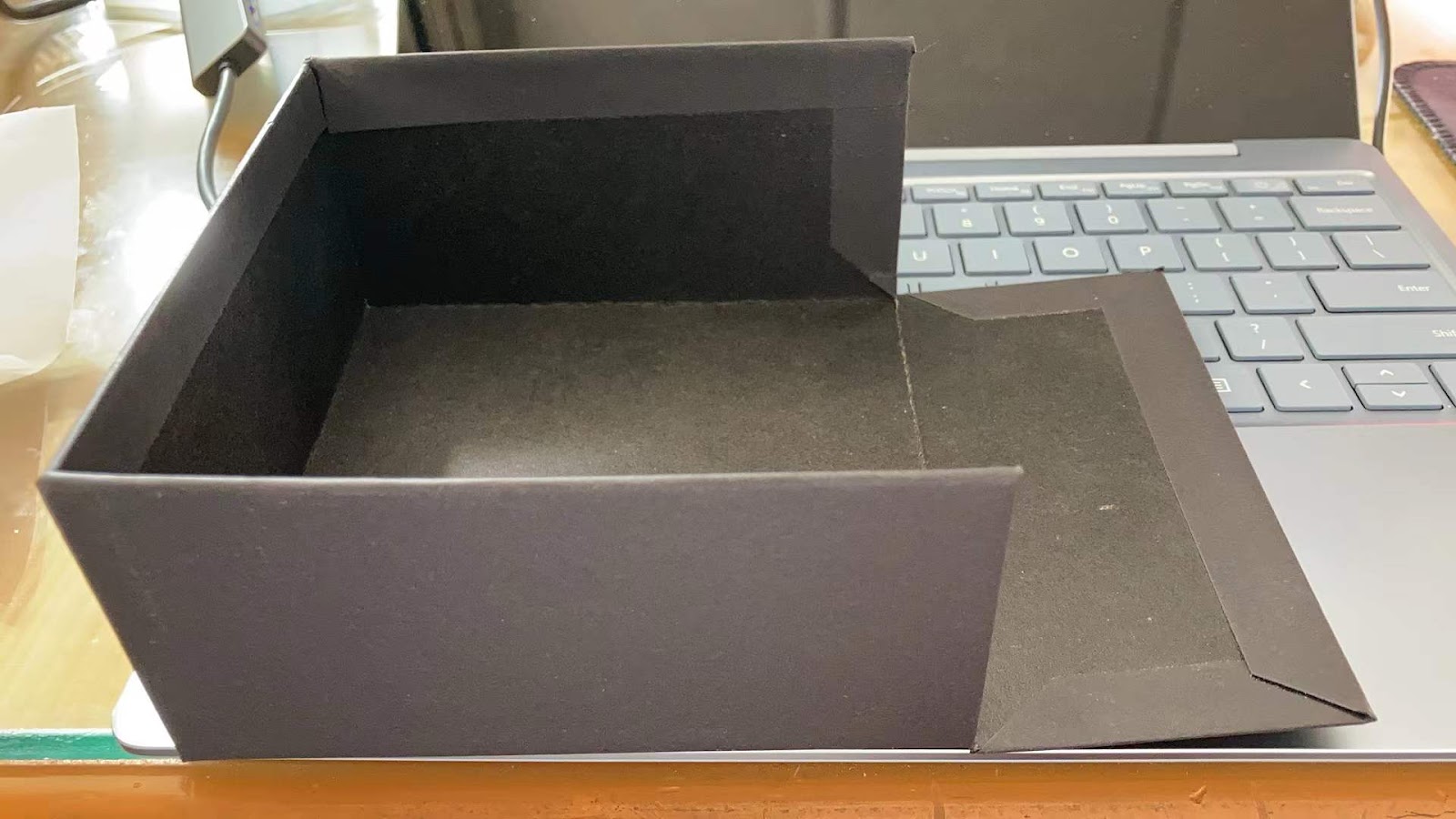

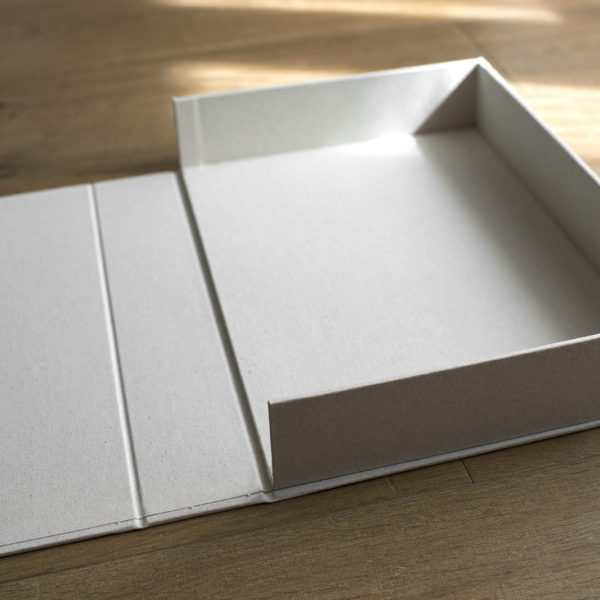

ZJH-C2 Clamshell Box Making Machine is a semi-automatic machine specially designed for making hinge boxes. Its main function is to help customers save materials and process therefore save a lot of cost. The ordinary hinge box is composed of a hardcover and regular boxes, this machine combines the hardcover and the box into one, which saves a lot of cost. At the same time, this machine can also be used to produce ordinary lid & base boxes, which can contribute to the production capacity of an ordinary wrapping machine when the production of such boxes is busy.

1. User-friendly touch screen interface.

2. High speed and efficiency.

3. Manual feeding, simple control and high production efficiency

4. Specialized design, this machine was only developed to make clamshell boxes.

5. Using this machine to make clamshell boxes will considerably reduce the cost and minimize the workflow of making clamshell boxes.




Standard Max box size

400*400*150mm(only box)
600*400*150mm(case extension included)

Min box size

50*50*10mm

Working speedV

500pcs/Hour

Machine size  L*W*H

1500*1065*2060mm

Machine weight

600kg

Machine power

800W/AC220


Delivery time and payment:

10-15 days after receiving a 30% deposit.

Limited Warranty :

One year.

Installation and debugging:

Due to pandemic caused travel restrictions, Zhongjiehao Technology will only provide services including box testing, job setting, online training, video call assistance for installation and job setting.
